)Clipping ggplot plot axes
I always forget how to do this, I guess it’s not something I need very often, but when I do it seems very hard to find the answer by searching as the obvious words to search on seem to take me to controlling the axis itself, not these little expansions/extensions. So here’s how to do it.

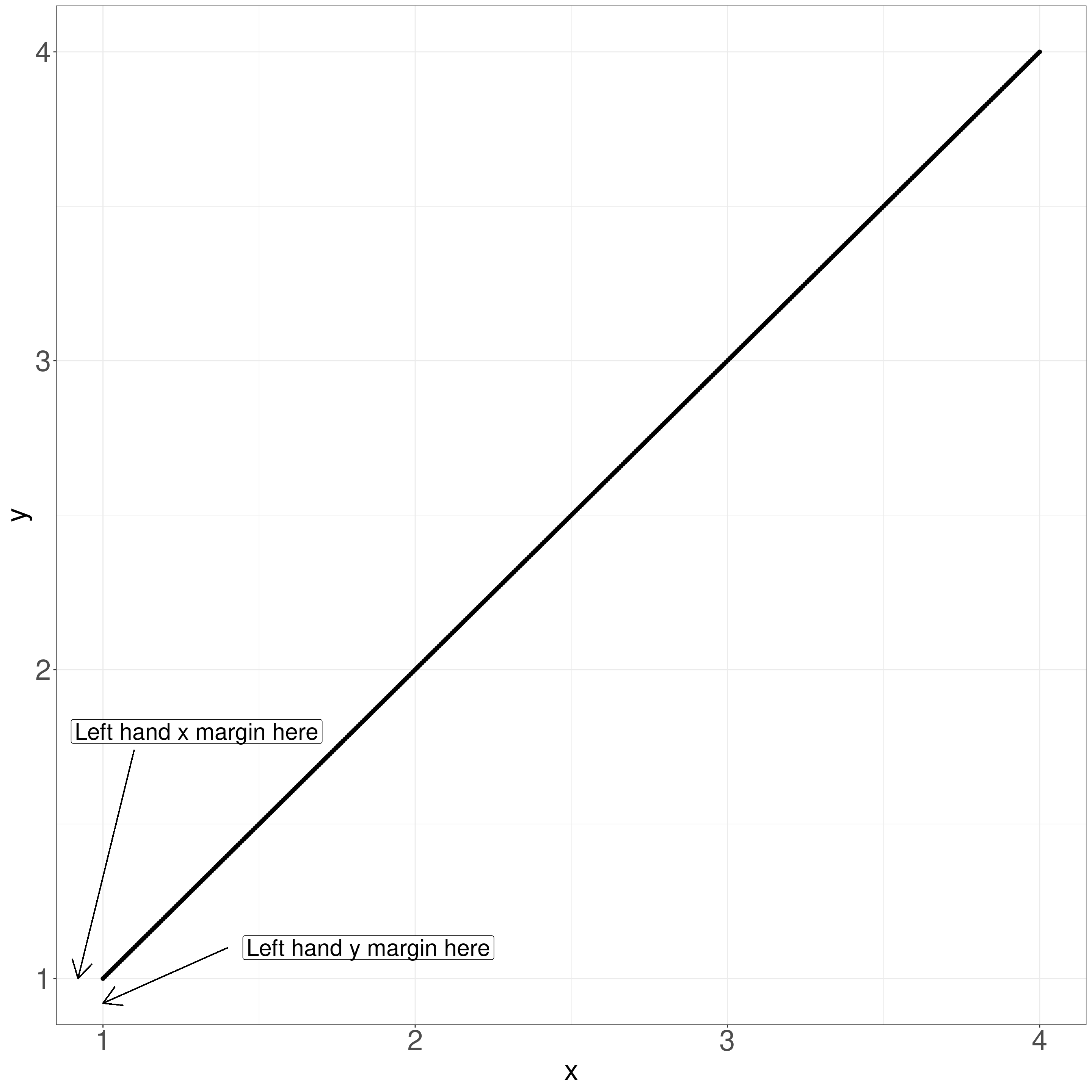

The default is that ggplot adds a small extension to the axes. So here is the default for a silly little plot. With rather crude annotation to show what I mean.
Show code
seq(1, 4, length = 500) %>%
as_tibble() %>%
rename(x = value) %>%
mutate(y = x) -> tibDat
ggplot(data = tibDat,
aes(x = x, y = y)) +
geom_point() +
annotate(geom = "label",
x = 1.3, y = 1.8,
label = "Left hand x margin here",
size = 8) +
geom_segment(x = 1.1, xend = .92,
y = 1.74, yend = 1,
arrow = arrow(angle = 30, length = unit(0.02, "npc"),
ends = "last", type = "open")) +
annotate(geom = "label",
x = 1.85, y = 1.1,
label = "Left hand y margin here",
size = 8) +
geom_segment(x = 1.4, xend = 1,
y = 1.1, yend = .92,
arrow = arrow(angle = 30, length = unit(0.02, "npc"),
ends = "last", type = "open")) +
theme(axis.text.x = element_text(size = 28),
axis.text.y = element_text(size = 28),
axis.title.x = element_text(size = 28),
axis.title.y = element_text(size = 28))

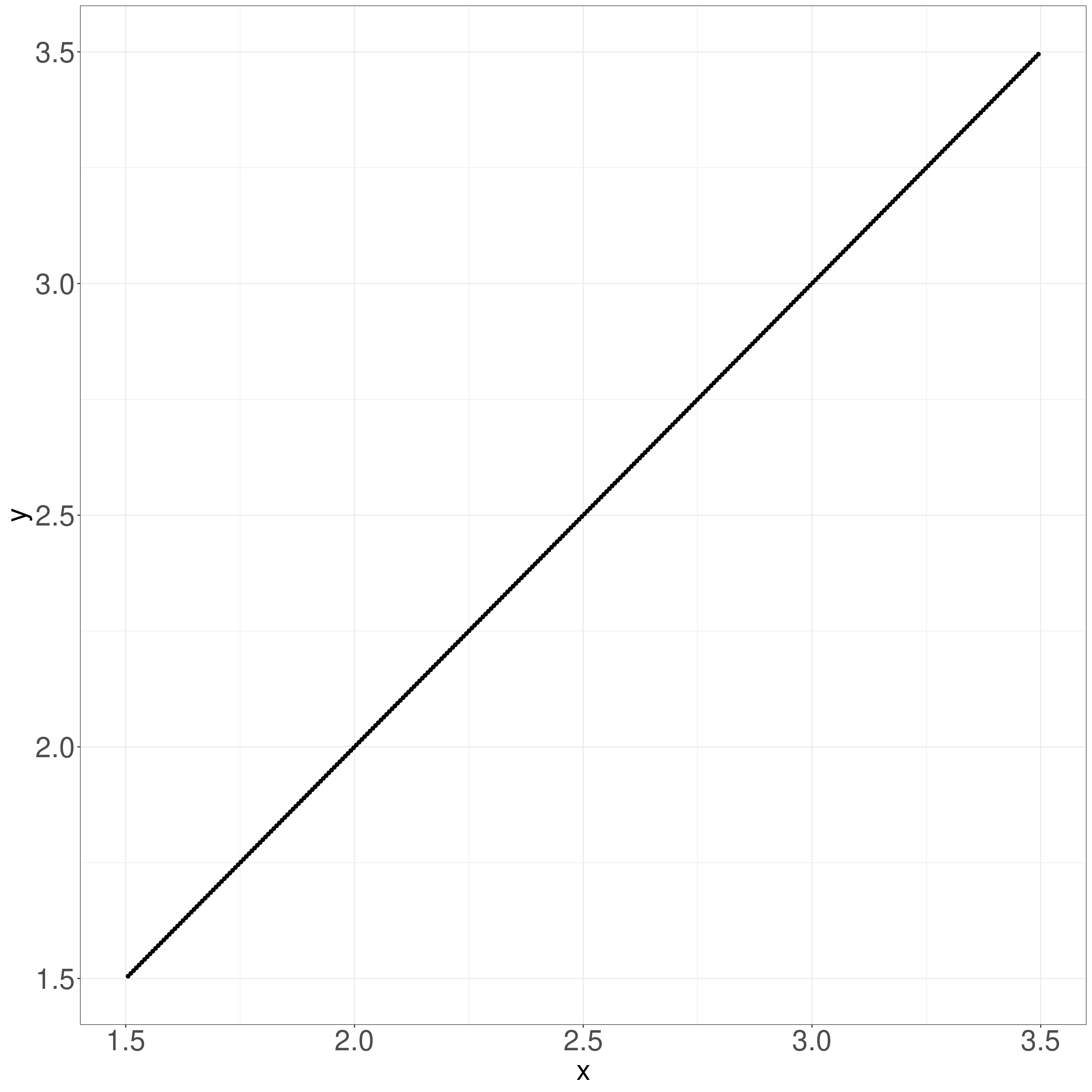

Here I use xlim(c(1.5, 3.5)) and ylim(c(1.5, 3.5)) to shorten the axes…
Show code
ggplot(data = tibDat,
aes(x = x, y = y)) +
geom_point() +
xlim(c(1.5, 3.5)) +
ylim(c(1.5, 3.5)) +
theme(axis.text.x = element_text(size = 28),
axis.text.y = element_text(size = 28),
axis.title.x = element_text(size = 28),
axis.title.y = element_text(size = 28))
Of course a lot of points have been dropped to pull the plot back to these limits. But there is still this margin on the axes. The trick is to add
scale_x_continuous(expand = c(0, 0)) +
scale_y_continuous(expand = c(0, 0))Show code
ggplot(data = tibDat,
aes(x = x, y = y)) +
geom_point() +
scale_x_continuous(expand = c(0, 0)) +
scale_y_continuous(expand = c(0, 0)) +
theme(axis.text.x = element_text(size = 28),
axis.text.y = element_text(size = 28),
axis.title.x = element_text(size = 28),
axis.title.y = element_text(size = 28))

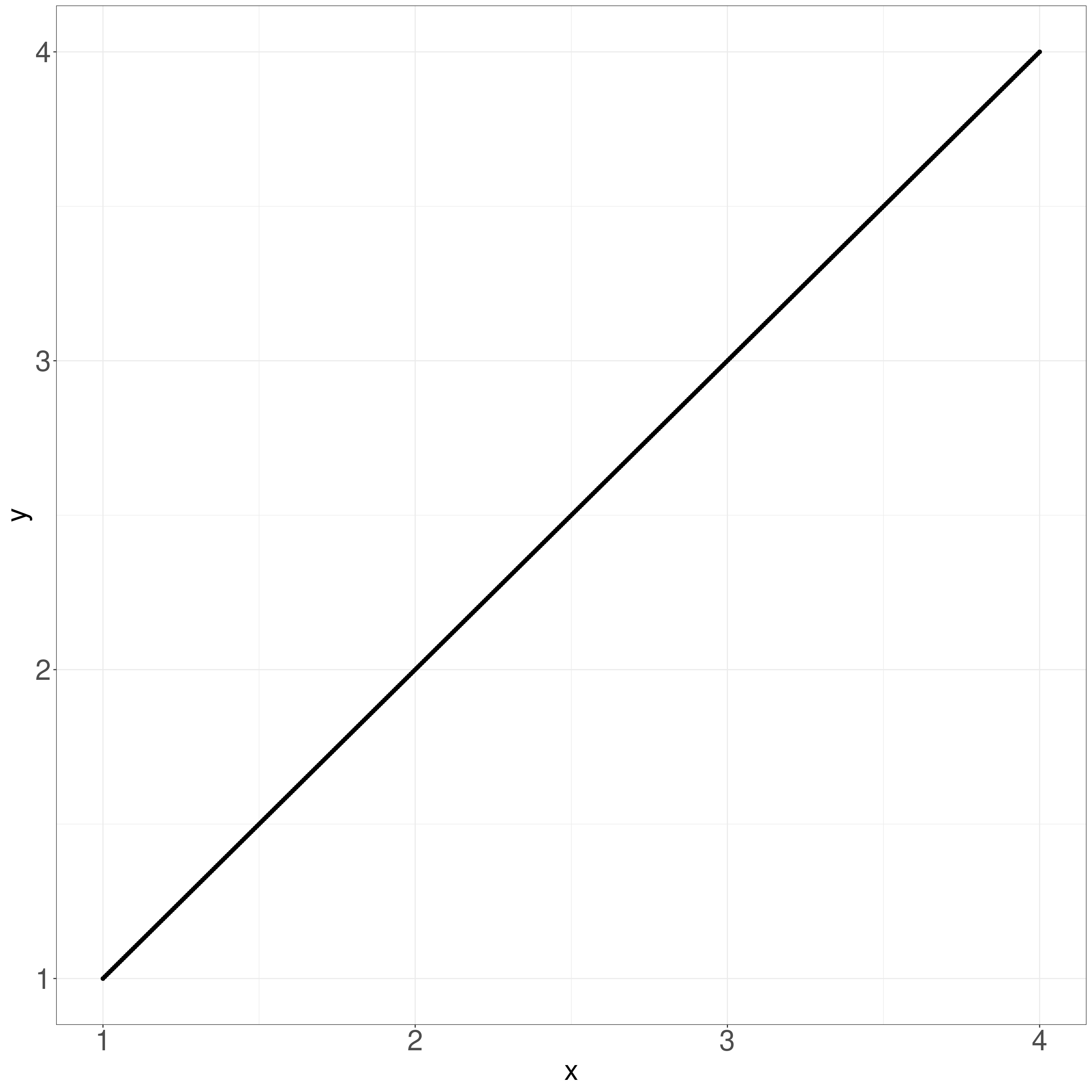

This is not the same as expand_limits()
Show code
ggplot(data = tibDat,
aes(x = x, y = y)) +
geom_point() +
expand_limits(x = c(1, 4)) +
theme(axis.text.x = element_text(size = 28),
axis.text.y = element_text(size = 28),
axis.title.x = element_text(size = 28),
axis.title.y = element_text(size = 28))

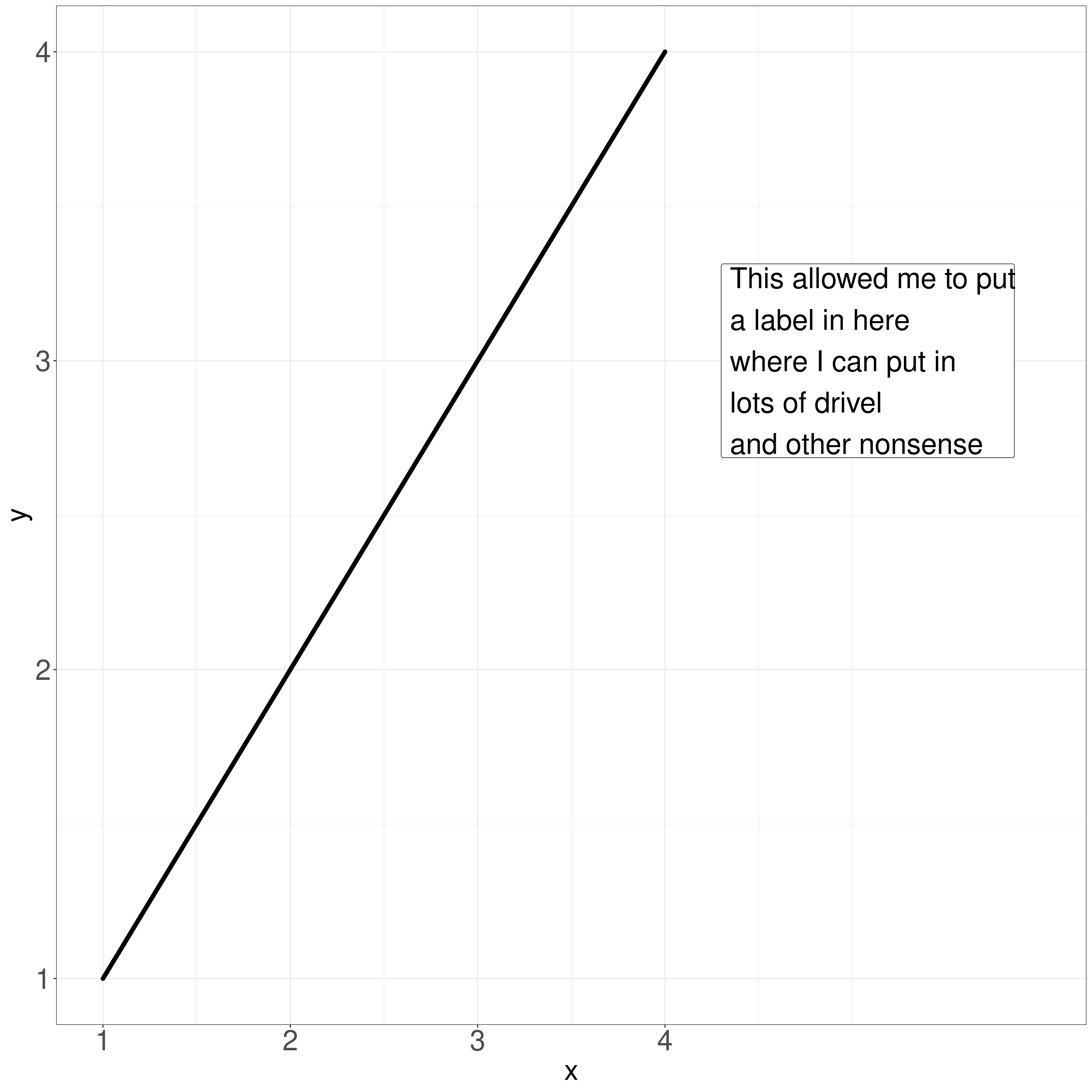

But you can use expand_limits() to create space on the plot. Here I’ve used scale_x_continuous(breaks = 1:4) to stop the x axis getting labelled up to 6.
Show code
ggplot(data = tibDat,
aes(x = x, y = y)) +
geom_point() +
expand_limits(x = c(1, 6)) +
annotate(geom = "label",
x = 4.3, y = 3,
label = "This allowed me to put\na label in here\nwhere I can put in\nlots of drivel\nand other nonsense",
hjust = 0,
size = 10) +
scale_x_continuous(breaks = 1:4) +
theme(axis.text.x = element_text(size = 28),
axis.text.y = element_text(size = 28),
axis.title.x = element_text(size = 28),
axis.title.y = element_text(size = 28))
Putting citations and references into Rmarkdown/Distill documents
This is something I do from time to time and I’m not claiming this is the best way to do it but it worked for me doing the post Jacobson #1 which, as is my usual, I did in Rstudio. This may not, perhaps probably won’t work if you using a different editor/environment. This also assumes you are using Zotero as your bibliographic database manager … which I do because it’s open source and excellent. You need the Better Bibtex for Zotero plugin for Zotero. That’s what the rbbt package connects to when it’s finding references.
I installed the rbbt library. It’s not in CRAN so (updated 12.vii.24):
### is now:
remotes::install_github("wmoldham/rbbt")
### as the original version:
# remotes::install_github("paleolimbot/rbbt")
### has a bug in it and it looks as if the owner paleolimbot has abandoned the project
### see https://github.com/paleolimbot/rbbt/issues/47 for the history of thisThat adds addins to the Rstudio addin menu and if you use the “Insert Zotero Citation” you get into the usual Zotero plugin lookup to select the reference(s) you want. The “Insert Zotero bibliography from Zotero Selection” puts the bibliography in at the end of the document so you generally want to end the document with a top level heading “References”
The really neat bits are that the plugin will collect just the references you cited into a bib format bibliography for you. To get that you put this
bibliography: tmpBib.bibin the yaml header of the Rmarkdown document. You can call the bib file anything you like of course but it has to be in the same directory as the source file. (So for a distill blog post it goes in the directory for the post, not in the project root. Don’t worry if you don’t use distill as life’s simple then: just keep the bib file with the Rmd file.)
To get this to work, first make sure you have saved your Rmarkdown document since you last added a citation and then use the third (and last) addin call created by the rbbt package: “Update bibliography for current document from Zotero” which does what that says and tells you in the console tab how many references it has added.
Working like this allows you to use all the Rmarkdown citation tricks like omitting the author(s) names, adding a reference so it will appear in the reference list despite not being cited in the document. See 4.5 Bibliographies and citations in bookdown.org for more on that.
The final neat bit is that one of these strengths is that you can set the formatting for the citations and reference list. I tend to use, despite a bit of grinding of teeth at the rigidity of it all, the APA rules for that but you can get a wide range of csl format files for different journals and rules. That is set by having this in the yaml header.
csl: apa.cslYou can get csl files from https://github.com/citation-style-language/styles.
Changing widths of plots in Distill
It seems I added that back in 9.viii.23 but there is nothing here as of February 2024! I think it should point here.
White space issue with coord_fixed() and facetted ggplots
See Bug in facetted ggplot with coord.fixed()
Testing to see what OS you are running on
I am often swapping Rmd files with someone running on Windoze (even with myself running Rstuio on Windoze in a VM) or on a Mac and the directory structure in the different machines may be different so it’s useful to be able to test what OS R is running under. Here’s the code that does it.
## directories
if(Sys.info()[1] == "Linux") {
setwd("/media/...")
datDir <- "/media/..."
} else {
setwd("H:/...")
datDir <- "H:/..."
}Replacing “…” and probably “/media/” and “H:/” with whatever makes sense locally. So far something that simple has worked for me though I might have to add a bit more sophistication if shifting things between more than just the two locations.
There is a nice blog post at https://www.r-bloggers.com/2015/06/identifying-the-os-from-r/ if you want more on this though I think that the R team have sorted some of incoherences in the Sys.info() and R.version$os and their help entries since that was written.
